MARINE HYBRID System

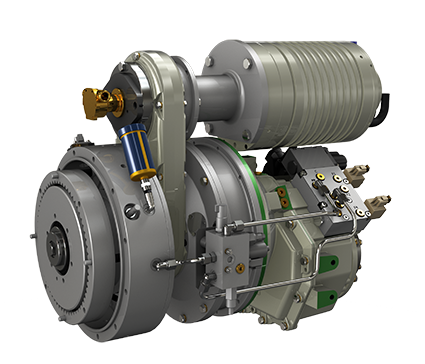

The TRANSFLUID HTM700 marine hybrid transmission system is made up of the following TRANSFLUID products:
- SAE multi-disc clutch system, to connect and disconnect the internal combustion engine
- Solenoid clutch-control valve
- Power shift with SAE B power take-off
- Permanent magnet electric machine (max 35kW or 47hp) with motor or generator function
- Marine Powershift gear-box with RBD flexible coupling
- Electric selector with in-built Soft-Shift
The marine hybrid transmission system enables you to sail at normal cruising speed with a traditional Diesel engine and allows you to sail in protected areas with zero emissions and in ports or marinas where silence and reduced pollution are well appreciated. During inshore navigation the silent propulsion enhances the enjoyment of the landscape and, when anchored, there is no need to keep the engine running to use on-board facilities, thus avoiding disturbing the calm of the surroundings.
Hybrid navigation allows you to different uses: in the Electric mode you can sail at low speeds without emissions, while navigating on Diesel engine mode you can fully exploit the power of the combustion engine. And you can decide whether or not to insert the battery recharge mode by simply pushing a button on the control panel. The Booster option adds electric motor power output to the combustion engine power output and not only when on full power but also in intermediate power output where it is possible to get the best out of the rotation speed of the Diesel engine while using the electric motor only for small accelerations or changes in speed.
The HTM700 marine hybrid transmission system offers the SAE4 bell coupling inlets and outlets; the maximum input torque (Tkn) is 560 Nm (414 lb-ft), the maximum input power is 145 kW (187 hp) with a maximum speed of 3000 rpm and overall weight of 221 kg (487 lb).
The HTM700 marine hybrid transmission system can be installed on new boats or retro-fitted to on-the-water boats; in this way you can have a modern and eco-friendly boat without having to replace it. Furthermore, this type of solution fits well whenever comfort is important but high speeds are not needed, such as non-displacement or semi-planing pleasure boats, passenger and freight boats, tourist riverboats, charter boats, fishing boats and rescue boats. This solution will become more and more necessary to navigate in protected waters or navigate while ensuring the protection of the environment.
The hybrid system is so compact it can be used on multiple applications and fitted in different ways. It is so flexible that it makes the boat unique in its kind, ensures a considerably reduced fuel consumption of no less than 15% while navigating on combustion engine power without causing acoustic and atmospheric pollution.
Marine Hybrid System ACCESSORIES:
MPCB MANAGEMENT SYSTEM
The MPCB management system is a device developed by TRANSFLUID, both in the hardware and software, able to manage the different functionalities (modes) of the hybrid system: Diesel, Electric, Booster and Generation, as well as integrating the information of other components and supervising the overall diagnostic system
