SPLIT POWER DRIVE – TRANSFER CASE

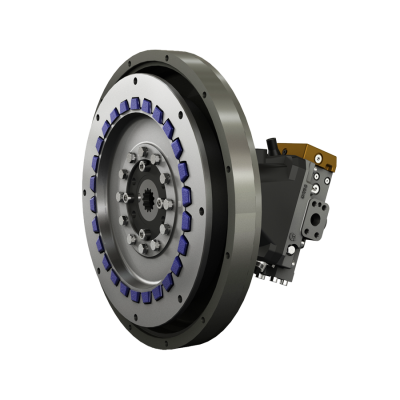

SRBD SINGLE PUMP DRIVE

The Single pump drive is a whole that includes all the components to connect a Diesel engine to a Pump.

The split power drive components include:

  • RBD coupling
  • QD bushing (machined)
  • SAE housing which inch threaded holes

PUMP DRIVES: TECHNICAL CONSTRUCTION

The drive principle uses internal and external teeth; the only difference is that the external teeth are blocks of special rubber molded compounds.
The external ring, in aluminum, has a profile corresponding to the rubber molded compound and can be directly mounted on the output flange of the prime mover.
By this method it is also possible to absorb small angular and radial misalignments.

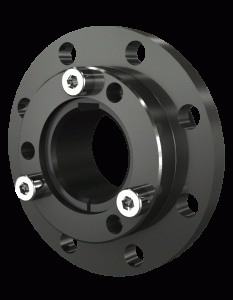

RBD_img1
