COMPACT POWER SHIFT TRANSMISSIONS

Developed to fit where other transmission manufactures left off, Transfluid produces two series of compact power shift transmission for engines operating at less than 125HP.

The Revermatic is a power shuttle transmission designed specifically for industrial applications. This robust transmission uses a hydraulically operated clutch to provide quick and soft direction reversing. The transmission connects to the engine flywheel with a torque converter and direction selection is controlled by an electrically actuated hydraulic selector integrated with a “soft shift device”.  The standard input for the Revermatic is SAE #4 or #3 housing with a 10” flywheel.  The Revermatic has found uses in a variety of industrial applications like shunting locomotives and burden carriers.

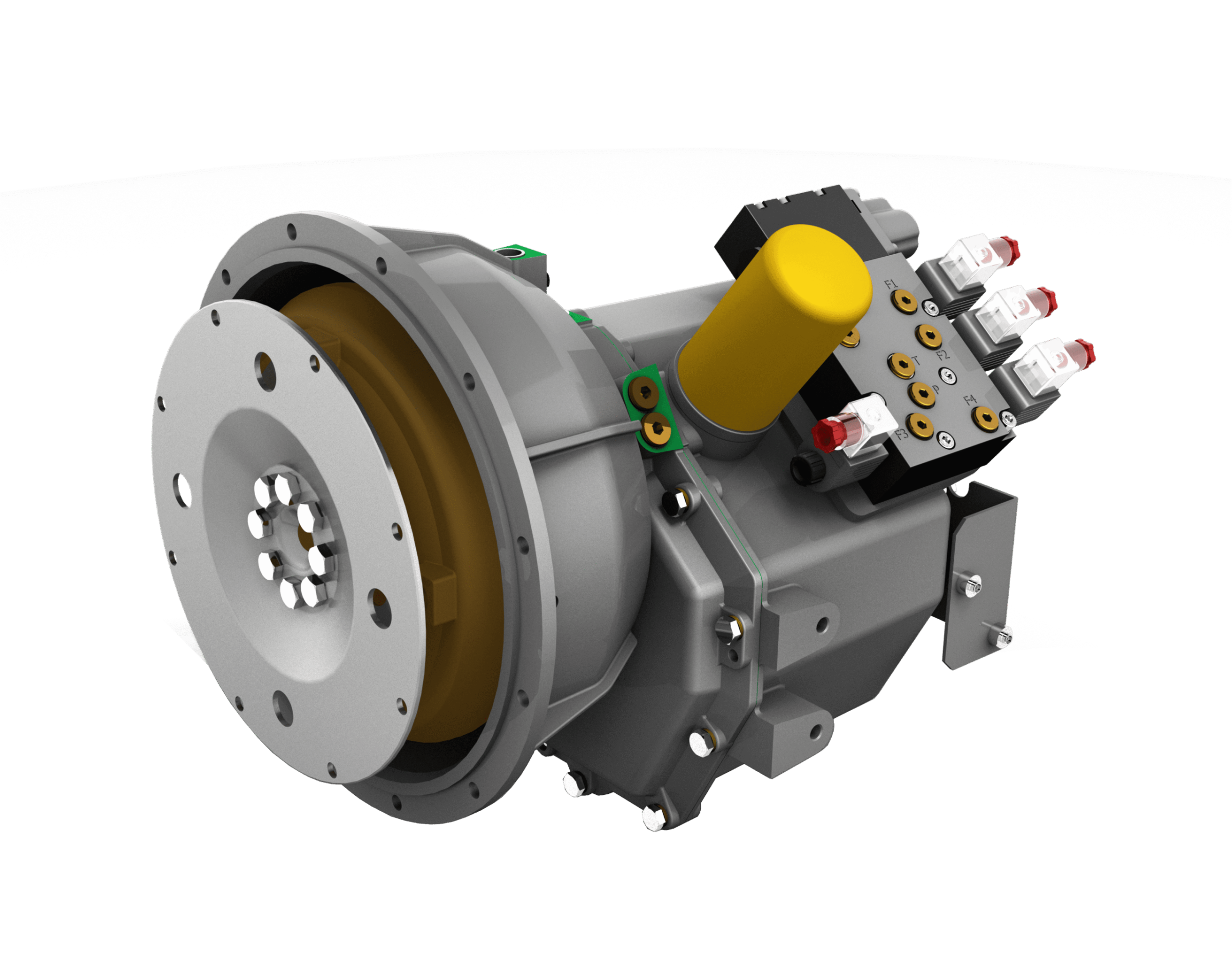

The Rangermatic is a powerful, compact powershift transmission that is available in two or three speed versions and is equipped with a single stage torque convertor and input housing to accept a SAE #4 or #3 -10” engine.  The transmission consists of a double gear train actuated by self-contained hydraulic clutches.   Application for the Rangermatic includes specialty vehicles, airports ground support equipment, construction machinery and small railroad equipment and mining machinery.

Both transmissions can be equipped with two- or four-wheel drive drop boxes, hydraulically operated parking bakes and pump PTO drives.  The transmissions are supplied with or without a shifter and come in a manual or automatic version.

About Transfluid

Driven by 65 years of industrial transmission manufacturing experience and backed by 5 subsidiaries and more than 50 distributors worldwide Transfluid has always been a point of reference in the world of industrial transmission equipment.
